UP TO 210lm/W
LL-OB02
OB02-100W
OB02-150W
OB02-200W
OB02-240W
OB02-300W
OB02(OFU)-400W
OB02(OFU)-500W
OB02(OFU)-600W
LED HIGHBAY LIGHT 100W-600W
FEATURES OF LL-OB02 SERIES

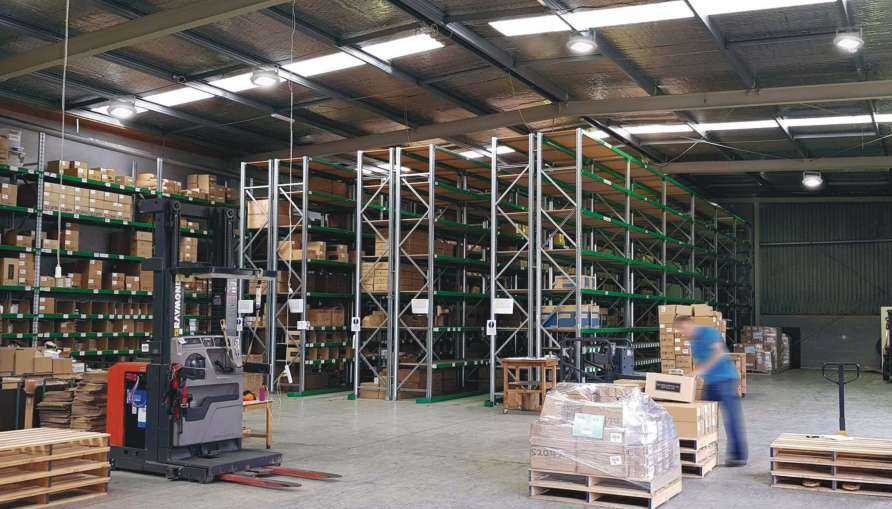

The OB02 series is specifically crafted to cater to indoor and industrial lighting needs. This LED high bay light boasts a sleek design that seamlessly blends aesthetics with efficient heat dissipation. It comes in various distributions, rendering it suitable for a range of lighting applications including gyms, industrial settings, multipurpose rooms in educational institutions, places of worship, retail spaces, and more.
• Patented design

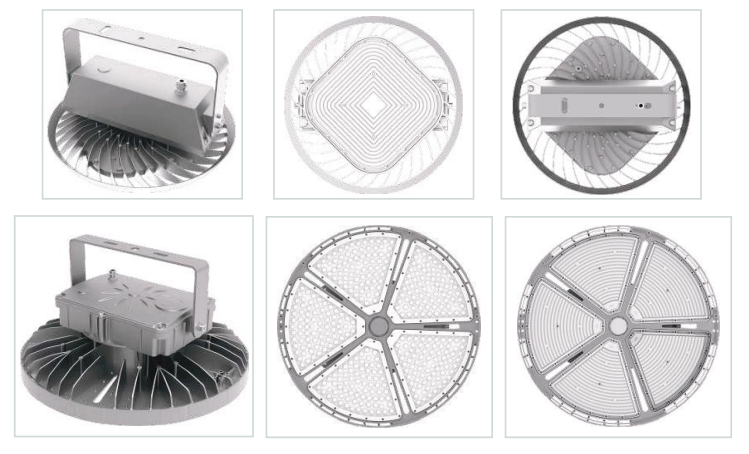

• Spiral heat dissipation design, accelerate the air flow away
• ADC12 aluminum die casting housing, perfect heat dissipation
• System efficiency 170lm/W, 210Im/W optional.
• High efficiency driver, PF > 0.95
• Lumi leds 2835 LED light source, CRl 70/80
• 3000K / 4000K / 5000K / 5700K / 6500K CCT
• Long life span, L90B50 > 49,000 Hours
KEY ADVANTAGES
High Lumen Output
High-performance LEDs efficacy up to 210lm/W.
Ample Inner Space
The power supply is assembled inside the driver box.
CCT & Power Adjustable Optional
An adaptable solution decreases the SKUs, enhances turnover and boosts profitability.
Flexible Installation
Yoke/Hook mount, the customized adjustable outdoor bracket is optional.
Compatible Controller Options
High-efficiency driver with DALI dimming and other options compatible.
Easy Maintenance
The modular overall design with exchangeable replaceable main components.
Professional Distribution Options
High-performance light-steering optics with 30D/60D/90D/120D are optional.
Parameter Table
| LL-OB02 100W | LL-OB02 150W | LL-OB02 200W | LL-OB02 240W | LL-OB02 300W | LL-OB02 OFU3(400W) | LL-OB02 OFU3(500W) | LL-OB02 OFU3(600W) | |
|---|---|---|---|---|---|---|---|---|
Power(W) | 100W | 150W | 200W | 240W | 300W | 400W | 500W | 600W |
Input voltage | Normal Voltage=100-277VAC, High Voltage=277-480VAC, please read *Note-1 before choosing. | |||||||
THD | <15% | <15% | ||||||
PF | >0.95 | >0.95 | ||||||
Control Option | 1-10V/PWM dimming. DALI DI control optional. | |||||||
Operating temperature | -40°C to 50°C (-40 °F to 122 °F) | |||||||
Driver brand | Inventronics/SOSEN | |||||||
