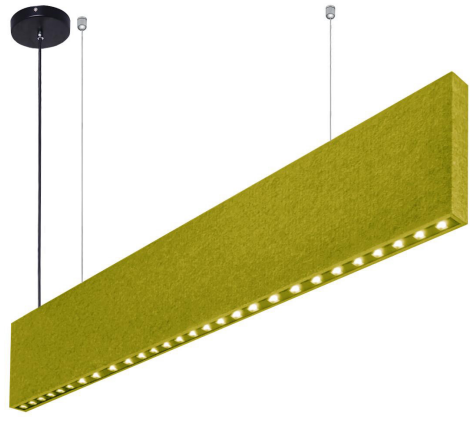

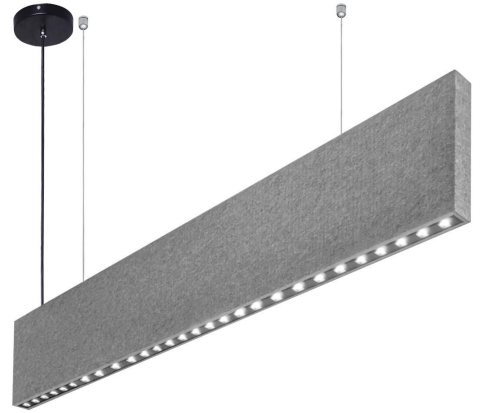

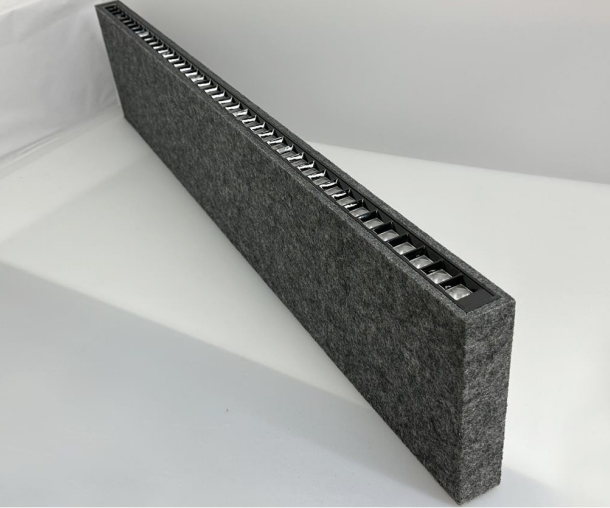

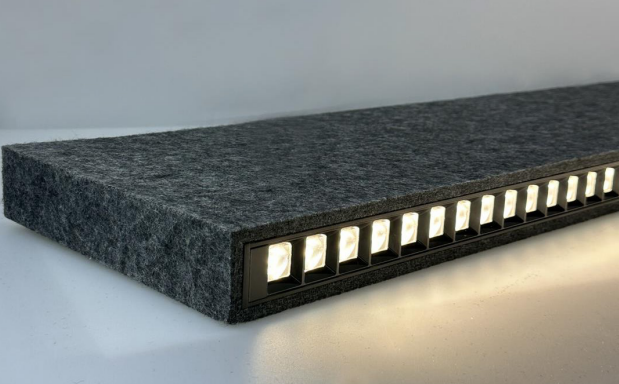

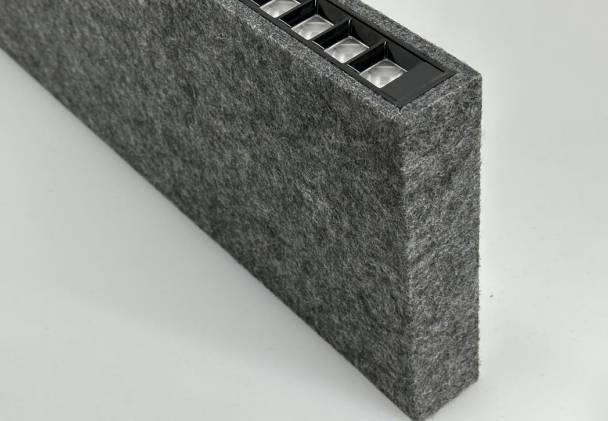

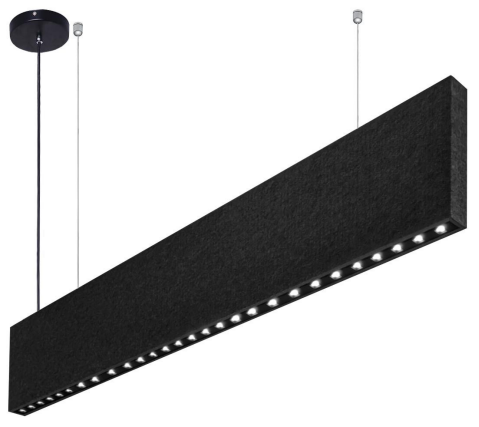

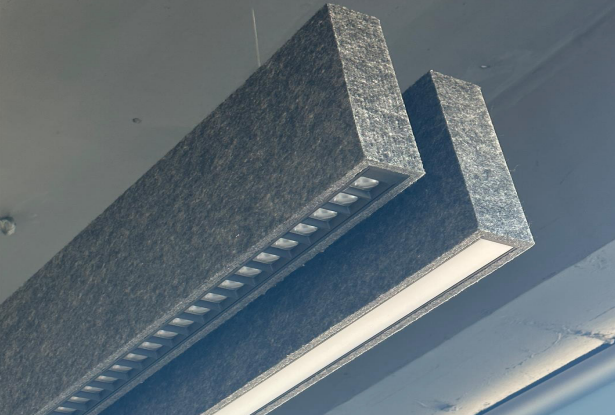

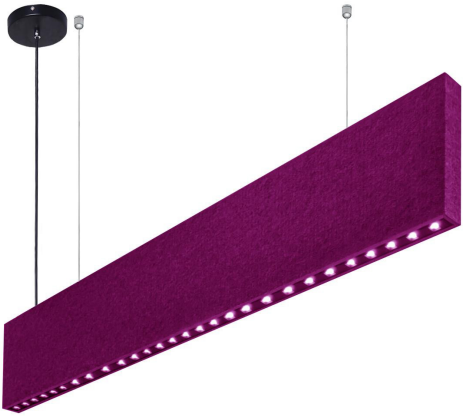

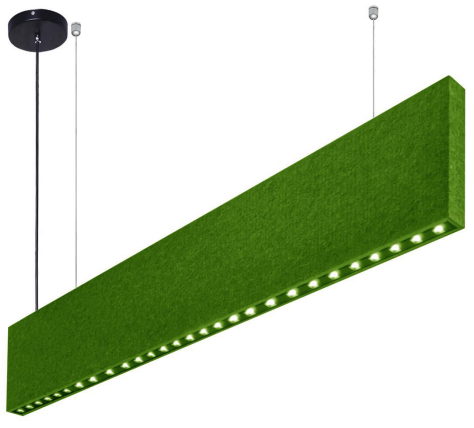

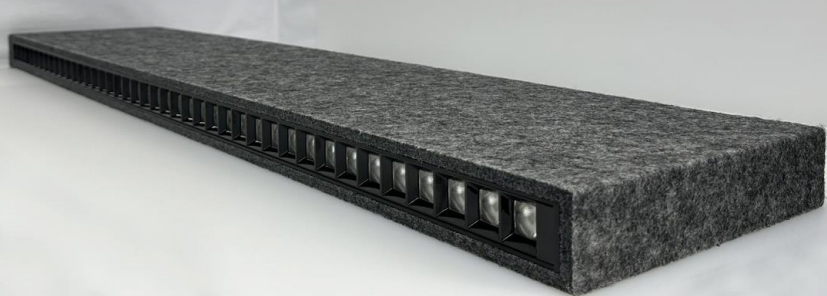

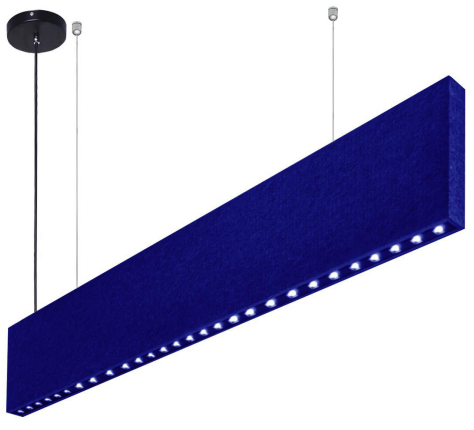

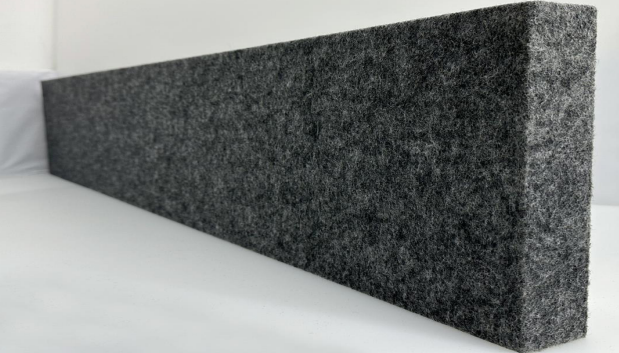

53mm Width Acoustic LED Reflector Linear
LL-EN-ACTXFGB381-20
LL-EN-ACTXFGB381-40
LL-EN-ACTXFGB381-60
Product Parameters
| Input Voltage | AC110-120V / AC220-240V,50-60HZ |
| Width | 53mm |
| Height | 381mm |
| Length | 675mm / 1308mm / 1944mm |
| LED Chip | SANAN SMD2835 |
| Driver Brand | BOKE / Cupower |
| UGR | <19 |
| PF | >0.90 |
| CRI | >80Ra ( >90Ra available) |
| Luminous Flux | 100Lm/W |
| Beam Angle | 34° |
| CCT | 3000K / 4000K / 6000K |
| Material | : Aluminum + Acoustic Panel + Lens |
| Acoustic Panel Color Option | Cloudy Black / China Red / Navy Blue / Stone Blue/ Ocean Blue / Indigo Blue / Camel Brown |
| Installation | Suspended Mount |
| Warranty | 5 years |
Parameter
| Model | Wattage | Lumens | Size |
|---|---|---|---|
LL-EN-ACTXFGB381-20 | 20W | 2000Lm | L675*W53*H381mm |
LL-EN-ACTXFGB381-40 | 40W | 4000Lm | L1308*W53*H381mm |
LL-EN-ACTXFGB381-60 | 60W | 6000Lm | L1944*W53*H381mm |
Dimensions
