• Edge light design, PS diffuser PMMA as LGP to avoid panel getting yellowish.
• High lumen led chips used for better luminous efficiency.
• Provide 3CCT switch and brightness options.
• Easy for surface installation.

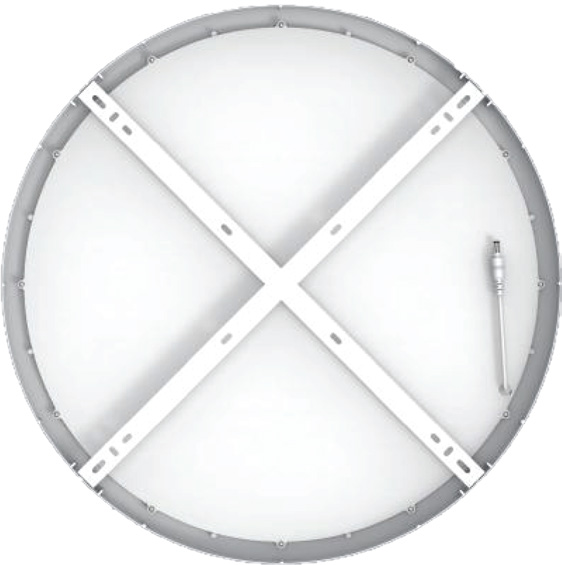

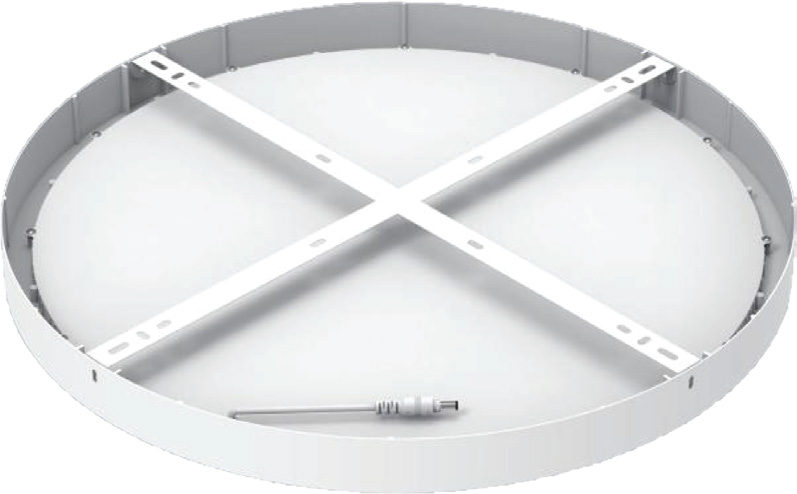

Surface Panel (Round)-LL-XSD-PB0510 Series
LL-XSD-SPR3024
LL-XSD-SPR4028
LL-XSD-SPR5036
LL-XSD-SPR6048
Description
Parameter
| Model | Size | WATT select | Voltage | CCT select | LPW | CRI |
|---|---|---|---|---|---|---|
LL-XSD-SPR3024 | φ300xH39mm | 24W | 85-265V | 30K/45K/65K | 100LM/W | >80 |
LL-XSD-SPR4028 | φ400xH39mm | 28W | 85-265V | 30K/45K/65K | 100LM/W | >80 |
LL-XSD-SPR5036 | φ500xH39mm | 36W | 85-265V | 30K/45K/65K | 100LM/W | >80 |
LL-XSD-SPR6048 | φ600xH39mm | 48W | 85-265V | 30K/45K/65K | 100LM/W | >80 |
Model Codes
LL-XSD-SPR3024LL-XSD-SPR4028LL-XSD-SPR5036LL-XSD-SPR6048

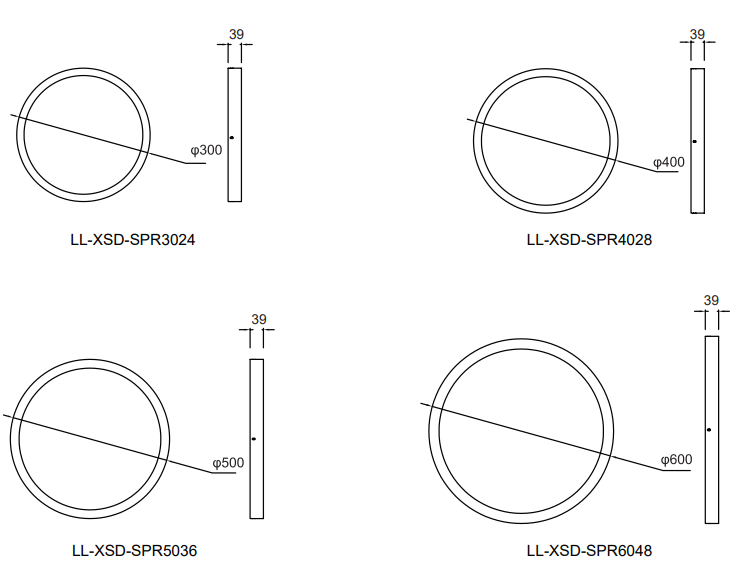

Dimensions
