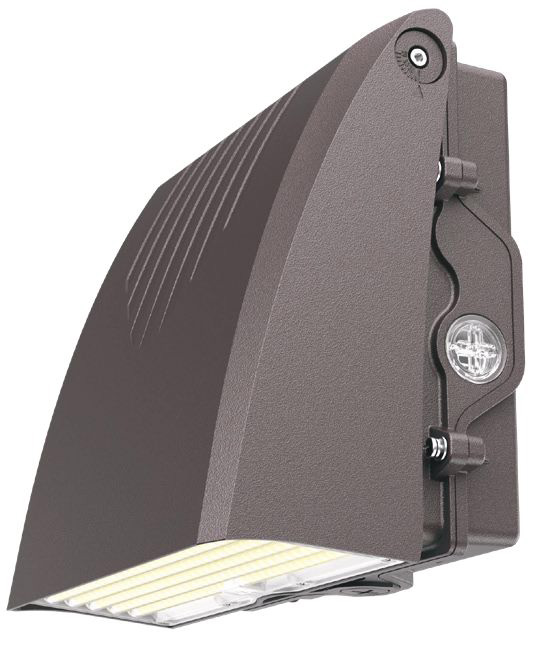

Outdoor LED Full Cut-Off Wall Pack
WP30-Adjustable
WP09F-Series
WP09F-XXZ
WP09F-40W
WP09F-60W
WP09F-80W
WP09F-100W
WP09F-120W
TPI 21-60W 140LM/W 2940-8400LM • Can be ceiling and hanging, the housing reserve BESA hole for UK market, easy for wiring. • Several kinds of light transmittance diffuser. Optional 92% high light transmittance diffuser and 90% light transmittance • Quick connector for emergency pack and sensor. • High efficiency: 140lm/w • Product length: 2/4/5/6ft • Application: warehouse, workshop, park, etc. Application condition Safety performance Temperature: -20~+45℃ Voltage: 220-240V/ 100-277V Protection level: Class I Glow wire test: 850℃ Semi-outdoor/indoor/outdoor Mounting method: hanging/wall mounting/ceiling Housing Optical parameter Diffuser material: PC Gear tray material: SPCC Housing Beam angle: 120° material: PC CRI: “80 Material for mounting hook: #301 stainless steel SDCM: ≤ 5 CCT:3000/4000/6500, 2CCT or 3CCT optional
Technical Specifications
| Wattage | 40/30/20/10W selectable / 60/50/40/30W selectable / 80/60/40/20W selectable / 100/80/60/40W selectab |
| Color Temp | Single CCT : 3000K-6500K / Selectable CCT: 3000K, 4000K, 5000K |
| CRI | -20~+45℃ Voltage: 220-240V/ 100-277V Protection le |
| IP Rating | IP66 |
| Input Voltage | 120-277VAC |
| Beam Angle | 120° |
| Color Temperature | Single CCT : 3000K-6500K / Selectable CCT: 3000K, 4000K, 5000K |
| Dimensions | 360.4mm |
| Efficacy | 130lm/W (±5%) |
| Material | PC Gear tray material: SPCC Housing Beam angle: 120° |
| Power / Wattage | 40/30/20/10W selectable / 60/50/40/30W selectable / 80/60/40/20W selectable / 100/80/60/40W selectable / 120/90/60/30W selectable |
| Voltage | 120-277VAC |
