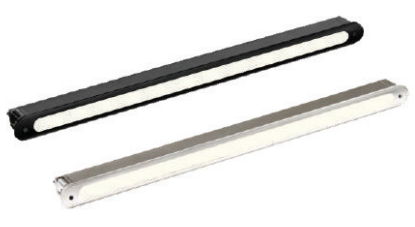

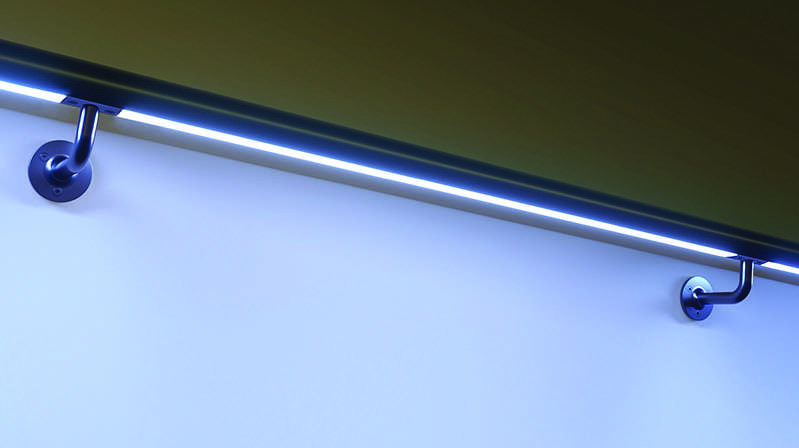

Handrail Light
Parameter
| Item Number | Size | Materials | CCT | Light Source | Beam Angle | Input Voltage | Typical Power (W)±3% | Typical Luminance | IP Rate |
|---|---|---|---|---|---|---|---|---|---|
08HD42 | Ø42.4×L1000 | SUS316 Stainless Steel, Aluminum, PC | 2700K 3000K 4000K 5000K 6000K 6500K | IP67 2835 LED Strip 120LEDs/m, 15W/m | Symmetric 110°, Asymmetric 70° | 24VDC (or 12VDC) | 15W | AC120−277V AC120−347V | IP67 |
Parameter
| Item Number | Size | Cut Out | Control Mode | CCT | Light Source | Beam Angle | Input Voltage | Typical Power (W)±3% | Typical Luminance | IP Rate |
|---|---|---|---|---|---|---|---|---|---|---|
08M18-S-101-CC | Ø18×H20 | M18×1 | ON/OFF, Dimming | Single | 1pcs×1W CREE LED | Symmetrical 30°, 60° | 3VDC, Constant current 350mA | 1W | Cool white=86 Warm white=73 | IP67 |
08M18-A-101-CC | Ø18×H26 | M18×1 | ON/OFF, Dimming | Single | 1pcs×1W CREE LED | Asymmetrical 50° | 3VDC, Constant current 350mA | 1W | Cool white=86 Warm white=73 | IP67 |
08M18-S-101-DC | Ø18×H26 | M18×1 | ON/OFF, | Single | 1pcs×1.5W CREE LED | Symmetrical 30°, 60° | 24VDC | 1.2W | Cool white=103 Warm white=87 | IP67 |
08M18-A-101-DC | Ø18×H30 | M18×1 | ON/OFF, | Single | 1pcs×1.5W CREE LED | Asymmetrical 50° | 24VDC | 1.2W | Cool white=103 Warm white=87 | IP67 |
