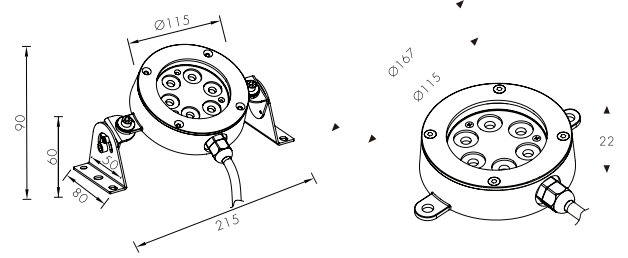

Surface Mount LED Underwater Light LL-04BS

Material Specifications

Front Cover & Housing: SUS 316# Stainless Steel
Light Window: Tempered Glass, T=8mm
Lens: Optical lens, efficiency?85%
LED: Type: SMD LED; Brands: Osram, Cree and etc.
Driver: Integral Driver with Constant Current Output, Constant voltage DC12/24V input
Cable Gland: IP68 PG11 Copper and Nickel Coated
Application Environment: Temperature of water between -20°C~+40°C, less than 1meter underwater depth
Power Cable: H05RN-F 2×1.0mm², L=3m (Single) H05RN-F 4×0.75mm², L=3m (RGB) H05RN-F 2×1.0+3×0.5mm², L=3m (RGBW) Control Support (Optional): ON/0FF, Optional PWM, DALI, 0/1-10V, DMX512, TRIAC

Item Number	Control Mode	CCT	Light Source	Beam Angle	Input Voltage	Typical Power (W)±3%	Typical Luminance	IK Rate
LL-106	ON/OFF, PWM	Single Color	6×2W CREE/ OSRAM LED	10°, 24°, 36°, 60°, 10×30°, 10×60°	24VDC	12	Cool white=864 Warm white=717	08
LL-306	ON/OFF, PWM, DMX512	RGB Full Color	6×3W RGB 3-in-1 LED	24°, 36°, 60°, 10×30°, 10×60°	24VDC	18	650	08
LL-406	ON/OFF, PWM, DMX512	RGBW Full Color	6×4W RGBW 4-in-1 LED	24°, 36°, 60°, 10×30°, 10×60°	24VDC	24	948	08
