DL254 recessed LED downlight features tool-free installation with built-in spring clips. It offers 5 wattage and 5 CCT options, high efficacy up to 120 LPW, durable aluminum housing, and versatile 0-10V dimming control.
DL254 product family
DL254(5CCT)
LL254-4-16W-A5C5
LL254-6-30W-A5C5
LL254-8-35W-A5C5
LL254-10-40W-A5C5
ETL
FCC
Energy Star
IC Rated
Wet Location
Description
Technical Summary
| Sizes | 4 in, 6 in, 8 in, 10 in |
| CCT | 2700K / 3000K / 3500K / 4000K / 5000K |
| Wattage | Selectable by size |
| Efficacy | 100 / 120 lm/W |
| Voltage | AC120-277V, AC120-347V option |
| Dimming | 0-10V |
| Location | Wet Location |
| Rating | Type IC rated |
Key Features
- 4 inch, 6 inch, 8 inch, and 10 inch full size range.

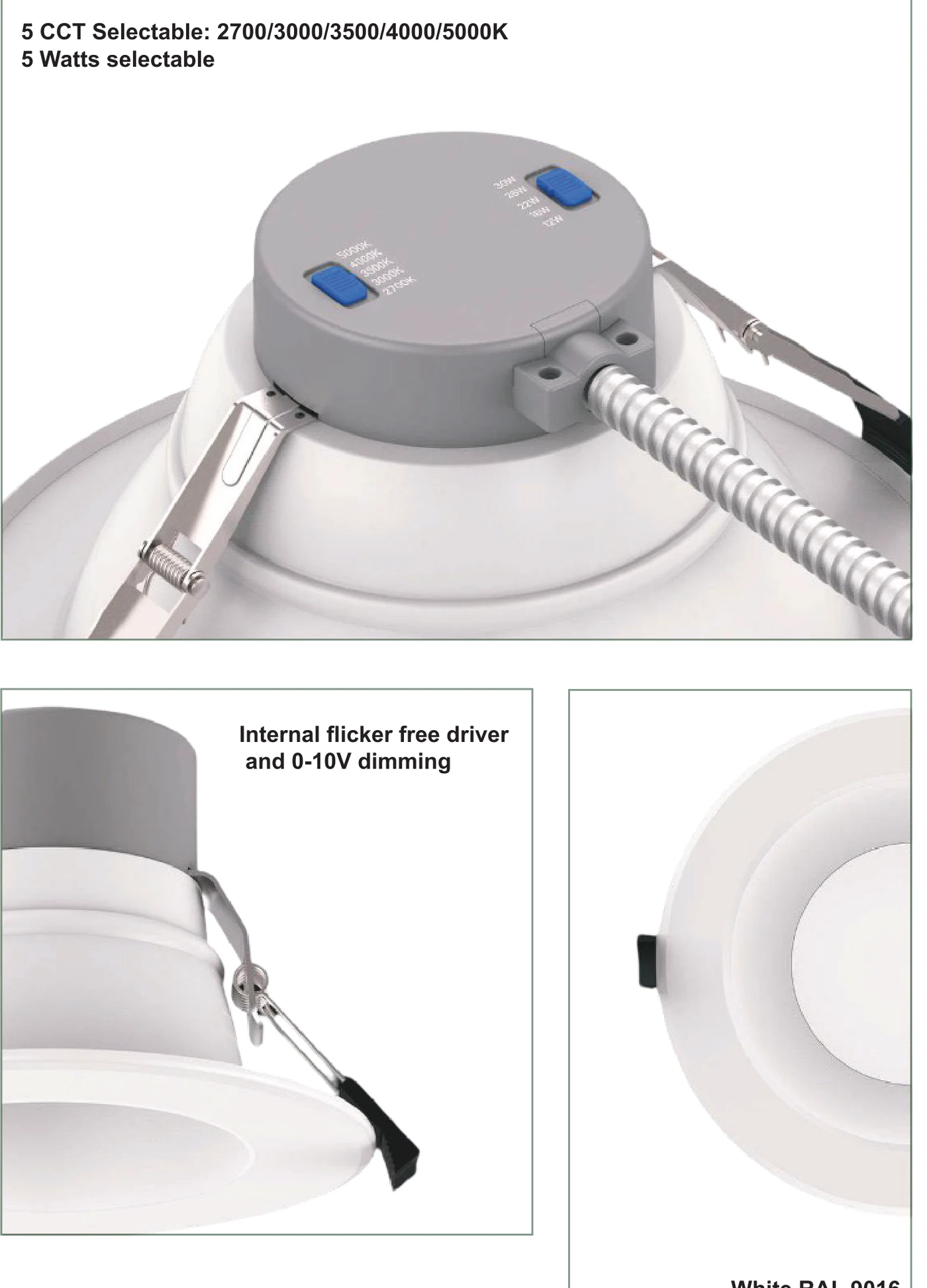

- 5 Wattage Select and 5 CCT Select technologies offer SKU reduction.
- High light efficiency standard 100 LPW and high output 120 LPW options.
- Integral driver eliminates traditional multi-piece fixture setup.
- Designed for new construction, remodel, and retrofit applications.
- Smooth reflector trim offers a clean modern appearance.
Models and Outputs
| Model | Wattage | CCT | Efficacy | Lumens | Voltage | Dimming | Certification |
|---|---|---|---|---|---|---|---|
| LL254-4-16W-A5C5 | 6/8/10/12/16W selectable | 5CCT | 100 lm/W | 1600 lm @16W | AC120-277V | 0-10V | ETL / FCC / ES / Title 24 |
| LL254-6-30W-A5C5 | 12/16/22/26/30W selectable | 5CCT | 100/120 lm/W | 3000/3600 lm @30W | AC120-277V | 0-10V | ETL / FCC / ES / Title 24 |
| LL254-8-35W-A5C5 | 16/22/26/30/35W selectable | 5CCT | 100/120 lm/W | 3500/4200 lm @35W | AC120-277V | 0-10V | ETL / FCC / ES / Title 24 |
| LL254-10-40W-A5C5 | 22/26/30/35/40W selectable | 5CCT | 100/120 lm/W | 4000/4800 lm @40W | AC120-277V | 0-10V | ETL / FCC / ES / Title 24 |
