Area lighting series are suitable for wall or street, with the special design, the lighting ensures the flexibility of use: work as floodlight with bracket, as street light with pole and connector.
LL-S068
LL-S068-50W-G-SMD
LL-S068-80W-G-SMD-A
LL-S068-80W-G-SMD-B
LL-S068-100W-G-SMD
LL-S068-150W-G-SMD-A
LL-S068-150W-G-SMD-B
LL-S068-200W-G-SMD
LL-S068-250W-G-SMD-A
LL-S068-250W-G-SMD-B
Parameter
| Model | Power | Size | Lens | Chip qty | Chip size | Lumen | Voltage | Beam Angle | CCT | CRI |
|---|---|---|---|---|---|---|---|---|---|---|
LL-S068-50W-G-SMD | 50W | 390*220*50mm | 8 in 1 | 72 pcs | Philips 3030 | 130 lm/W | AC100–265 V | 15°/30°/60°/90°/120°/150°/90×90°/142×52°/150×150°/150×75° | 2700-6500K | >80 |
LL-S068-80W-G-SMD-A | 80W | 390*220*50mm | 12 in 1 | 108 pcs | Philips 3030 | 130 lm/W | AC100–265 V | 15°/30°/60°/90°/120°/150°/90×90°/142×52°/150×150°/150×75° | 2700-6500K | >80 |
LL-S068-80W-G-SMD-B | 80W | 390*220*50mm | 16 in 1 | 144 pcs | Philips 3030 | 150 lm/W | AC100–265 V | 15°/30°/60°/90°/120°/150°/90×90°/142×52°/150×150°/150×75° | 2700-6500K | >80 |
LL-S068-100W-G-SMD | 100W | 430*262*50mm | 8 in 1 | 128 pcs | Philips 3030 | 130 lm/W | AC100–265 V | 15°/30°/60°/90°/120°/150°/90×90°/142×52°/150×150°/150×75° | 2700-6500K | >80 |
LL-S068-150W-G-SMD-A | 150W | 430*262*50mm | 12 in 1 | 192 pcs | Philips 3030 | 130 lm/W | AC100–265 V | 15°/30°/60°/90°/120°/150°/90×90°/142×52°/150×150°/150×75° | 2700-6500K | >80 |
LL-S068-150W-G-SMD-B | 150W | 430*262*50mm | 16 in 1 | 256 pcs | Philips 3030 | 150 lm/W | AC100–265 V | 15°/30°/60°/90°/120°/150°/90×90°/142×52°/150×150°/150×75° | 2700-6500K | >80 |
LL-S068-200W-G-SMD | 200W | 530*322*50mm | 8 in 1 | 200 pcs | Philips 3030 | 130 lm/W | AC100–265 V | 15°/30°/60°/90°/120°/150°/90×90°/142×52°/150×150°/150×75° | 2700-6500K | >80 |
LL-S068-250W-G-SMD-A | 250W | 530*322*50mm | 12 in 1 | 300 pcs | Philips 3030 | 130 lm/W | AC100–265 V | 15°/30°/60°/90°/120°/150°/90×90°/142×52°/150×150°/150×75° | 2700-6500K | >80 |
LL-S068-250W-G-SMD-B | 250W | 530*322*50mm | 16 in 1 | 400 pcs | Philips 3030 | 150 lm/W | AC100–265 V | 15°/30°/60°/90°/120°/150°/90×90°/142×52°/150×150°/150×75° | 2700-6500K | >80 |

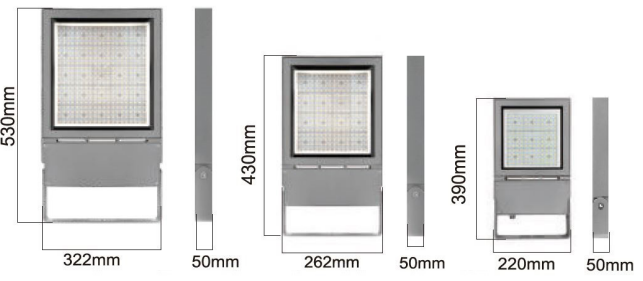

Dimensions

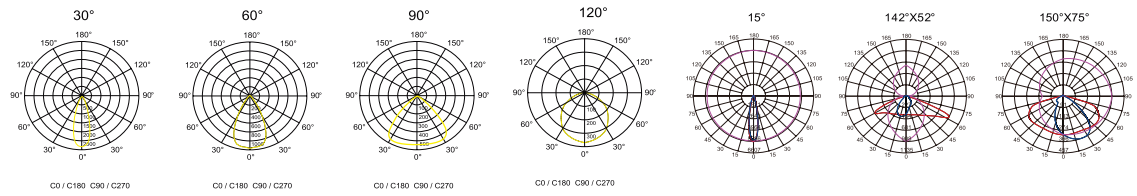

Beam angle
