Die-casting construction with great heat dissipation, Power & CCT selectable, multiple voltage option. Optional emergency driver, Build-in photocell, 0-10V dimming, 6kV surge protection.
LED WALL PACK-WPT07
DESCRIPTION
BODY COLOR
Technical Specifications
| Model No. | WPT07/60/SW/8S3/XX/PHO/YY |
| Wattage (W) | ADJ 30/45/60 |
| Voltage (V) | 120-277/120-347 |
| CRI | 80 |
| Efficacy (LM/W) | 150@3000K / 160@4000K / 155@5000K |
| Output (LM) | 9000@3000K / 9600@4000K / 9300@5000K (60W) |
| LED Chips | Seoul 2835 |
| Lifetime (Hours) | L70B50: 50,000Hours @ 25℃/77°F |
| CCT | Selectable 3000/4000/5000K |
| Beam Angle (°) | Rotatable 0°/12°/24°/36° |
| LED Driver | Plusrite/BQ |
| Dimming | 0-10V |
| Surge Protection | 6KV |
| IK Degree | IK10(Housing), IK08(Lens) |
| IP Degree | IP65 |
| Operation Temperature | -40~50ʧ (-40ʨ~122ʨ) |
| Warranty | 5 Years |
| Dimension | 274*147*157mm (10.8*5.8*6.2inch) |
| Sensor | Build-in Photocell |
| Mounting | Wall Mount |

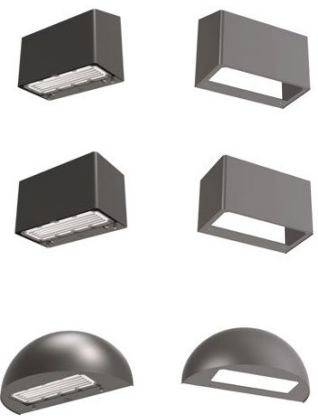

Optional covers
