Explosion Proof Emergency Light LL-EXEL-06
Application scenario
Product Features
• This product has good explosion-proof function, suitable for various inflammable and explosive places, mainly used in railway, electric power, metallurgy, petroleum, petrochemical, chemical, steel, aviation, ship and each Efficient lighting in factories, stations, large facilities, venues and other places. • The lamp body is made of aluminum alloy by die casting. The surface of the lamp is sprayed with high voltage electrostatic. The exposed fasteners are stainless steel with high corrosion resistance, and the overall anti-corrosion performance is excellent. • Adopting high-intensity transparent shield, high-transparency, impact-resistant, unique anti-glare design, with unique optical reflector, it has the characteristics of high light efficiency and low light decay. • The explosion-proof structure designed in accordance with the national standard GB3836 document has reliable explosion-proof performance, long life, special constant current power supply, low power consumption and constant output power. It adopts high temperature and aging resistant silica gel sealing ring with high protection grade.

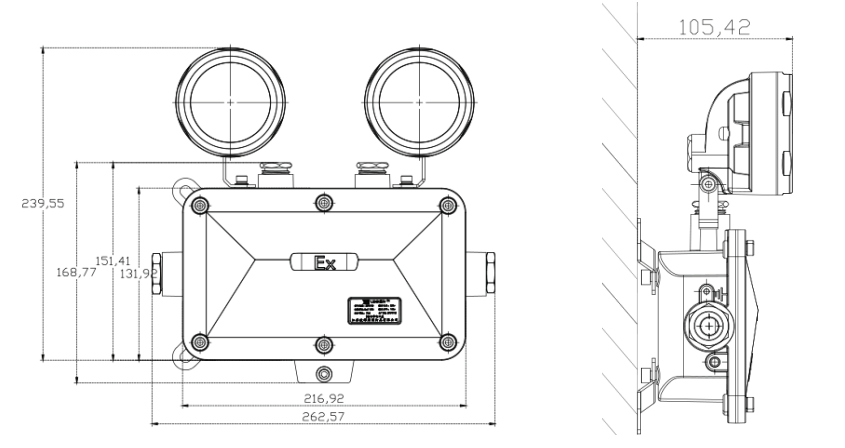

Dimensions

Product Parameters
| tem | Symbol | Description | Unit |
|---|---|---|---|
| Rated Voltage | VOLT | AC220 | V |
| Emergency voltage | / | DC1.2 | V |
| Power | P | 2*3 | W |
| Protection Level | IP | IP65 | IP |
| Lighting Angle | θ | 38 | ° |
| LED Qty | / | 2*1 | PCS |
| Base specifications | / | CREE3030 | |
| Anticorrosion grade | / | WF2 | |
| Explosion proof grade | / | Ex d IIB T6 | |
| Light efficiency | η | 120 | Lm/W |
| Frequency | f | 50/60 | Hz |
| Power Factor | PF | >0.95 | PF |
| Operating Temperature | TOPR | -20~40 | °C |
| Storage Temperature | TOPR | -20~40 | °C |
| Light Source | / | led | PCS |
| Correlate Color Temperature | CCT | 3000-6500 | K |
| Color Rendering Index | CRI | ≥70 | RA |
| LED'S Operating Life | LIFE | 100000 | Hours |
| Start-up time | T | ≤0.2 | S |
| Executive standard | / | GB3836.1、GB3836.2 | |
| Weight | / | 2.5 | KG |
| Size | / | 230x260x85 | mm |
| Emergency Time | / | 120 | Min |
